TX-Poster

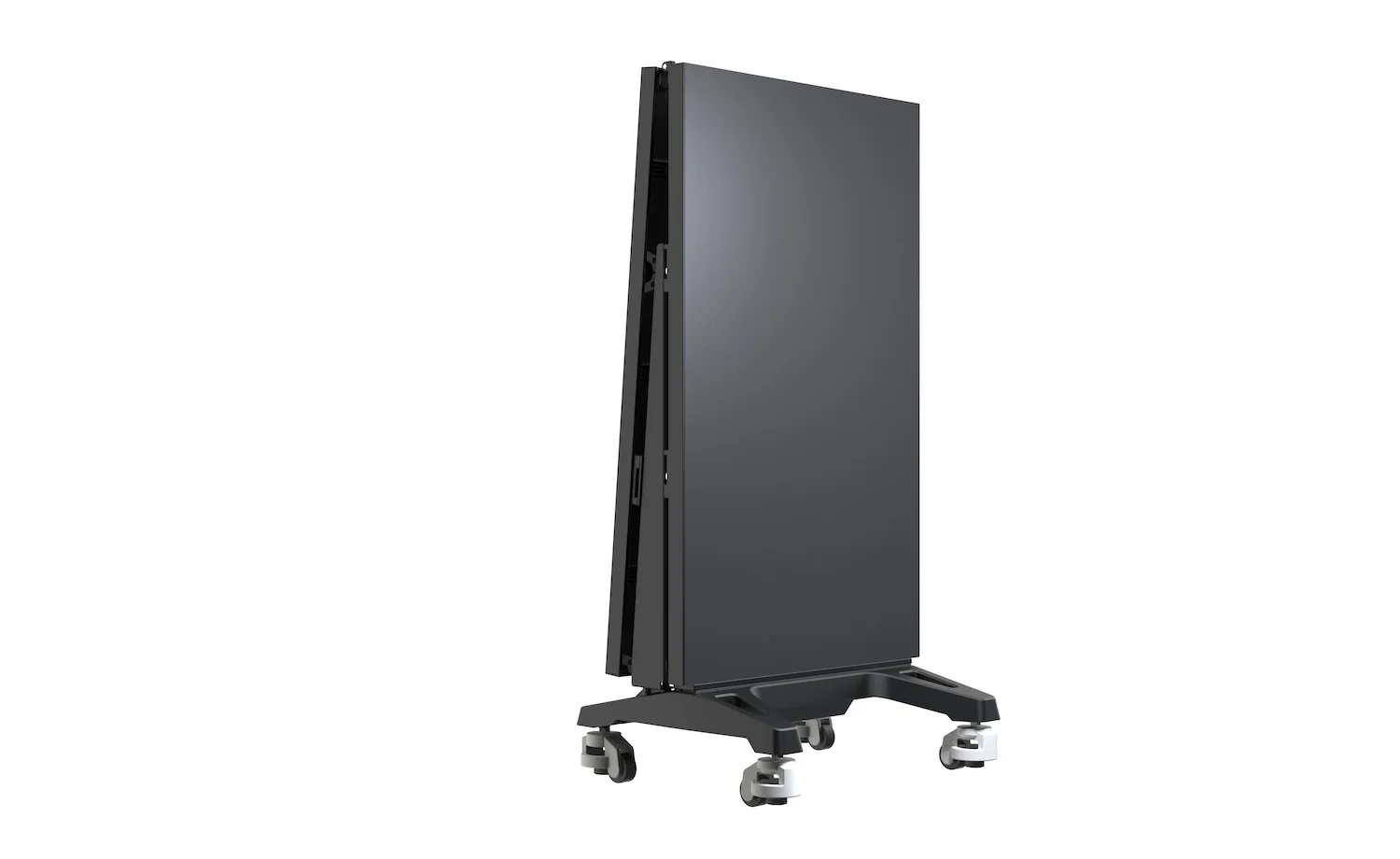

The TX-Poster offers an innovative COB LED solution for mobile indoor installations—rollable and foldable, lightweight, and with outstanding image quality. With pixel pitches ranging from 0.7 mm to 2.3 mm, a calibrated brightness of up to 1,500 nits, and a contrast ratio of 30,000:1, it delivers razor-sharp images in a compact format. Thanks to COB technology, it is robust and durable.
Setup and takedown are simple: The poster is rolled directly into a flight case for transport and fits easily into any elevator.

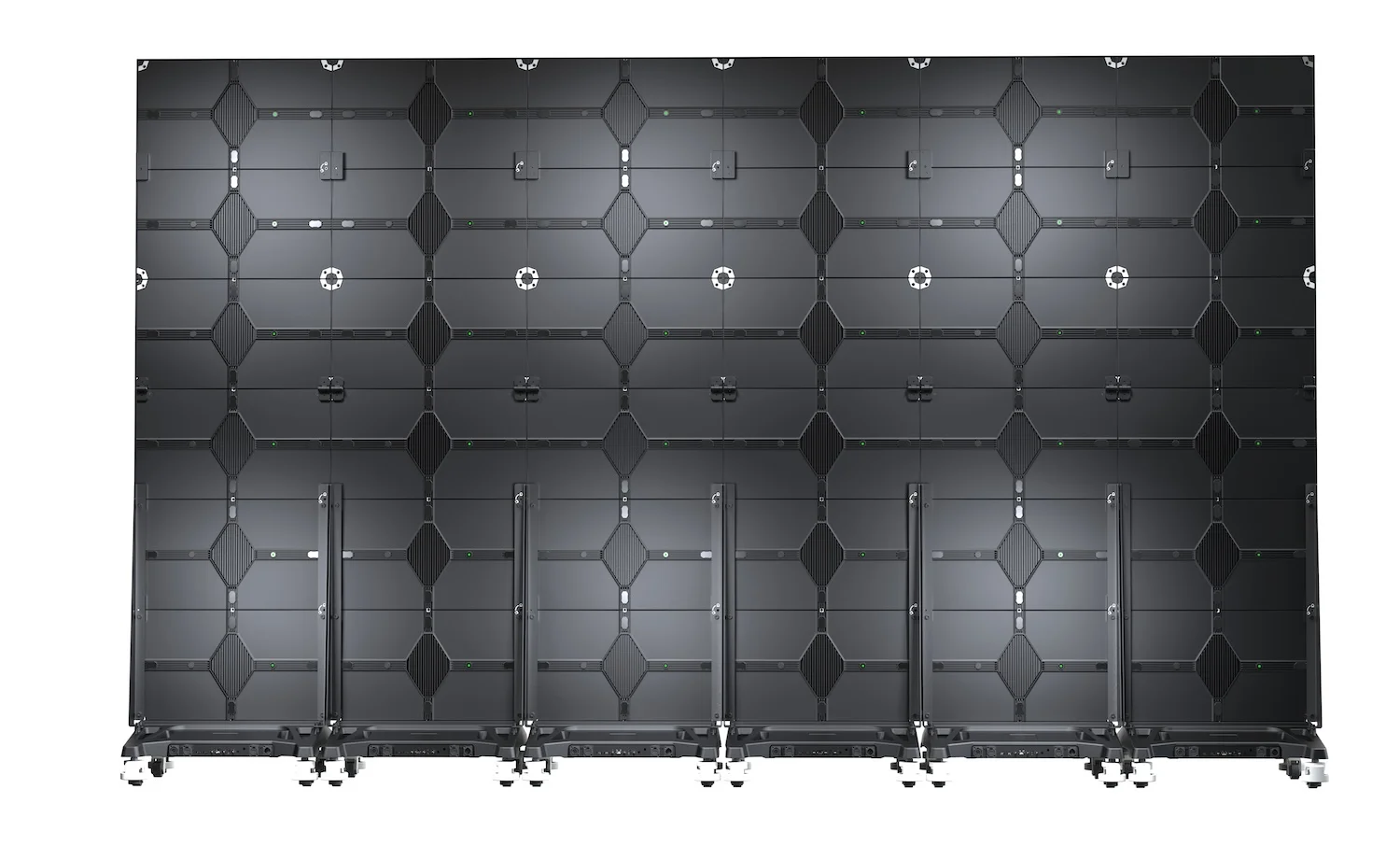

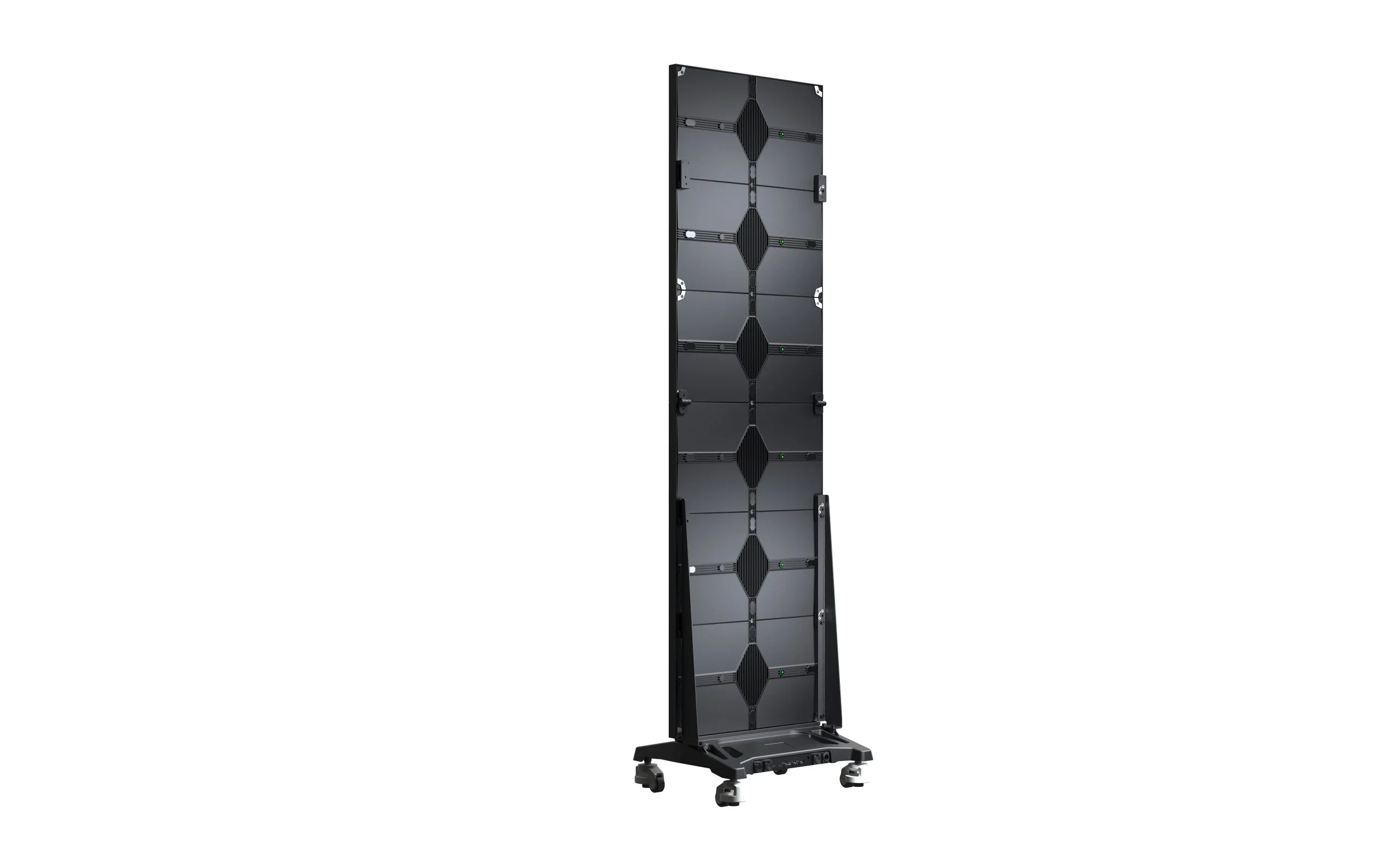

Content can be conveniently uploaded via Wi-Fi or HDMI; a T50 media player is already integrated. The TX-Poster consists of 5 modules (at 1.2 mm) arranged vertically for a resolution of 1,350 px in height. Multiple posters can be connected together as desired to create a larger screen on wheels—versatile for use at events, trade shows, and mobile presentations.
Technical Data
| Panelsize 600×337,5mm | 1,2 mm | 1,5 mm | 1,8 mm |
| Pixelpitch | 1,25 mm | 1, 56 mm | 1,8 mm |
| Brightness | 1.500 nit | 1.500 nit | 1.500 nit |
| Resolution | 480 x 1.350 ppx | 384 x 1.296 px | 320 x 1.080 px |
| Receivingcard | Novastar A8s-N | Novastar A8s-N | Novastar A5s+ |
| Power consumption | typ. 50W, max. 440W | typ. 150W, max. 440W | typ. 150W, max. 440W |
| IP Class | IP41 | IP41 | IP41 |
| Weight | 43 kg | 55 kg | 57 kg |
| Total size | 600 x 1.810 mm | 600 x 2.140 mm | 600 x 2.140 mm |
